GB Kinetics Example

This example demonstrates how to run the GB kinetics script and walks through where the results are stored. For this example, we focus on a \(\Sigma\) 17[001](410) STGB in Copper (Cu) with box length along the GB = 8 x GB period and box length along tilt axis = 4 x CSL length along tilt axis.

• Open GB_kinetics.py and input Gb information, displacements recorded earlier and parameters for optimal transport calculations. Start with specifing the parameters required to identify the material and GB such as sigma number, misorientation, inclination, material symbol, and tilt axis. size_along_gb_period determines the length of the box along the gb period. The length of the box generated is 2*period*size_along_gb_period. size_along_tilt_axis determines the length of the box along the tilt axis. The length of the box generated is 2*(CSL length along tilt axis)*size_along_tilt_axis. lattive_Vectors determine what crystal system is under consideration.

#---------- Input parameters for GB in question ---------------#
# Element
element = "Cu"
# Sigma value of Gb under consideration
sigma = 29
# Misorientation of the Gb
misorientation = 43.6
# Inclination of the GB
inclination = 0.0
# Lattice parameter of the element (try using the lat par corresponding to the potential you intend to use)
latticeParameter = 3.615
# Tilt axis of GB
axis = [0, 0, 1]
# Size of system along the GB period in terms of 2*CSL period
size_along_gb_period = 10
# Size of system along the tilt axis in terms of 2*CSL period
size__along_tilt_axis = 1
# Lattice Vectors for the crystal system (current implementation is tested for fcc only)
lattice_vector = np.array([[0.5, 0.5, 0.0],
                           [0.0, 0.5, 0.5],
                           [0.5, 0.0,0.5]])

• Next specify the parameters for Sinkhorn Algorithm run which determines the atomic trajectories in transformed region. regularizationParameter determines the regularization for Sinkhorn algorithm. It can be loosely thought of as a measure of temperature. Lower regularizationParameter means algorithm is more contrained and gives out only the smallest displacement maps. Higher regularizationParameter might give out multiple atomic mappings some of them might not be the lowest displacement. maximumIterations determines the maximum number of iterations done by Sinkhorn Algorithm. If the algorithm does not converge (code will raise this error), increase this parameter. chooseDisconnection is an optional argument which allows users to choose the disconnection mode if they want. Set chooseDisconnection = True if you want to choose the disconnection mode, choose_disconnection = False will automatically create disconnection mode with smallest burgers vector and corresponding step height.

#-------------- Parameters for min-shuffle algorithm --------------#
# Regularization parameter for min-shuffle algorithm
regularizationParameter = 0.005
# Maximum iterations for min-shuffle algorithm
maximumIterations = 1000000
# Put True if you want to choose the disconnection mode, False will automatically create disconnection mode with
# smallest burgers vector and corresponding step height
chooseDisconnection = True

• Specify the file that contains bicrystallography data from oilab output in oilab_output_file. Current implementation has output files included for 3 tilt axes ([001],[110],[111]), stored in Data folder. output_folder is the folder in which the output of this program is stored.

# ------------------------- Input and output folders -------------------- #
# Location of bicrystallographic data obtained using oILAB
oilab_output_file = "data/fcc0-10.txt"
# Location of directory where output is to be stored, the program creates subdirectories
# for each element, sigma value , misorientation and disconnection mode within it
output_folder = "output/"

• Specify locations of external programs needed for running this code. This includes location of lammps installation, mpi installation. Also indicate the full path to the lammps potential file you want to use.

# ---------- Location of programs needed to run this (change these) ----------------------#
# Location of directory where lmp_serial and lmp_mpi are stored
lammps_location = "/opt/homebrew/bin"
# Location of directory where mpirun is stored
mpi_location = "/opt/homebrew/bin"
# Full path to the potential to be used
lammps_potential = "/opt/homebrew/Cellar/lammps/20240829-update1/share/lammps/potentials/Cu_mishin1.eam.alloy"

• Input the displacements that minimize GB to minimum energy structure. Can be obtained using gridSearch.py script.

# Displacements obtained from running grid_search script
disp_along_gb = -0.1
disp_along_tilt = -0.9

• Specify the parameters for NEB run. partitions is the linearly interpolated images used in NEB run. neb_mode lets you choose if you want to run intermediate images through NEB or not. neb_mode = 1 -> NEB with intermediate images, neb_mode = 0 -> NEb with just the initial and final GB images

# Parameters for neb run on lammps
# Number of partitions used for neb calculations
partitions = 4
# Variable lets you choose if you want to run intermediate images through NEB or not.
# mode = 1 -> NEB with intermediate images, mode = 0 -> NEb with just the initial and final GB images
neb_mode = 1
# Variable which allows for switching off automatically triggering neb calculations (in case you only need disconnection images)
run_neb = False

• Finally call the function that calls the required functions and carries out the procedure detailed in the paper.

# Run
if __name__ == "__main__":
    results_folder_path = runGBkinetics(sigma,misorientation,inclination,latticeParameter,lattice_vector,
                                        axis,size_along_gb_period,size__along_tilt_axis,element,
                                        regularizationParameter,maximumIterations,
                                        lammps_location,mpi_location,output_folder,lammps_potential,
                                        disp_along_gb,disp_along_tilt,oilab_output_file,
                                        chooseDisconnection,run_neb,neb_mode,partitions)

• Save and run GB_kinetics.py

$ python3 GB_kinetics.py

User input

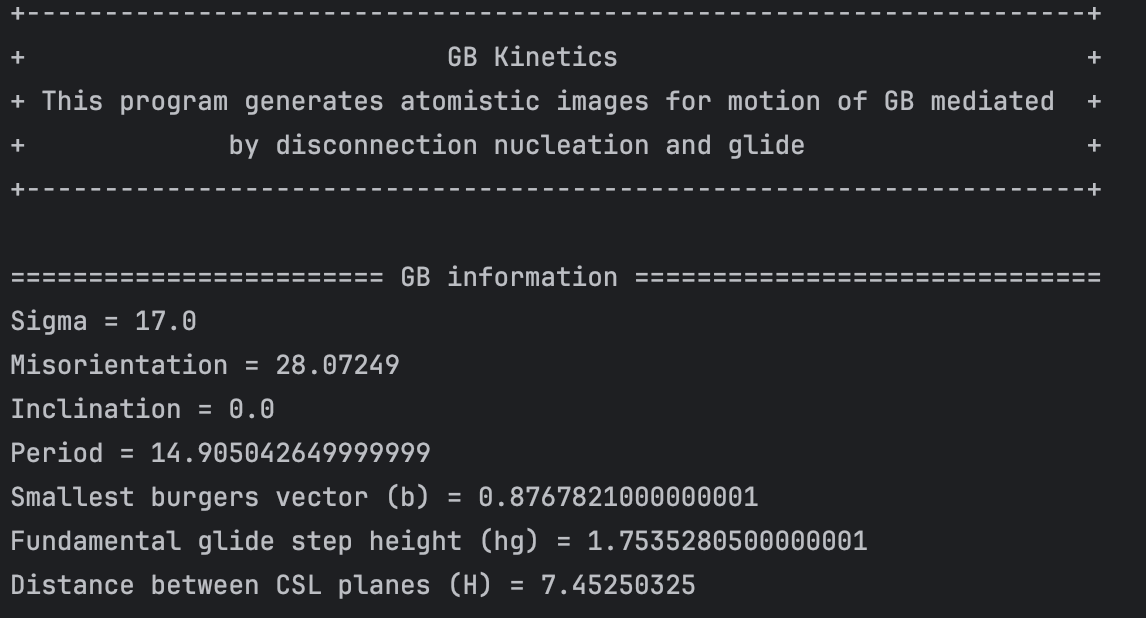

After running GB_kinetics.py, the program will show the input parameters pertinent to system user wants to explore.

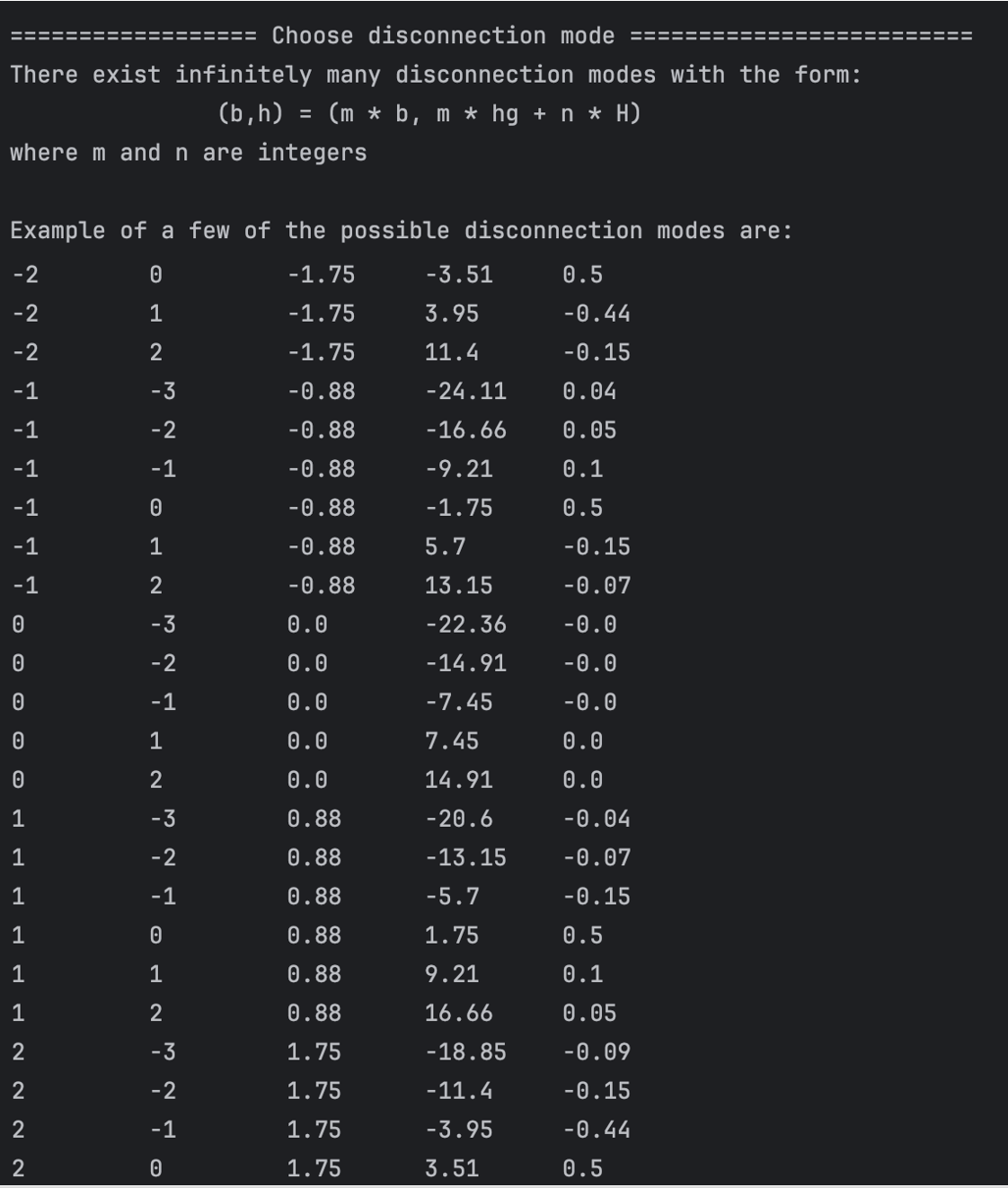

Then the program asks the user to choose the disconnection mode they want to construct. To do this, it lists out the disconnection modes calculated using GB information

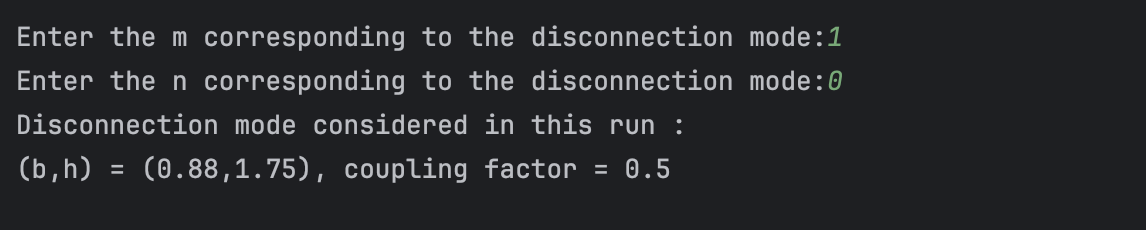

User can input the values of m and n, that corresponds to the disconnection mode they want to construct. The program confirms the disconnection mode entered.

Command line Output

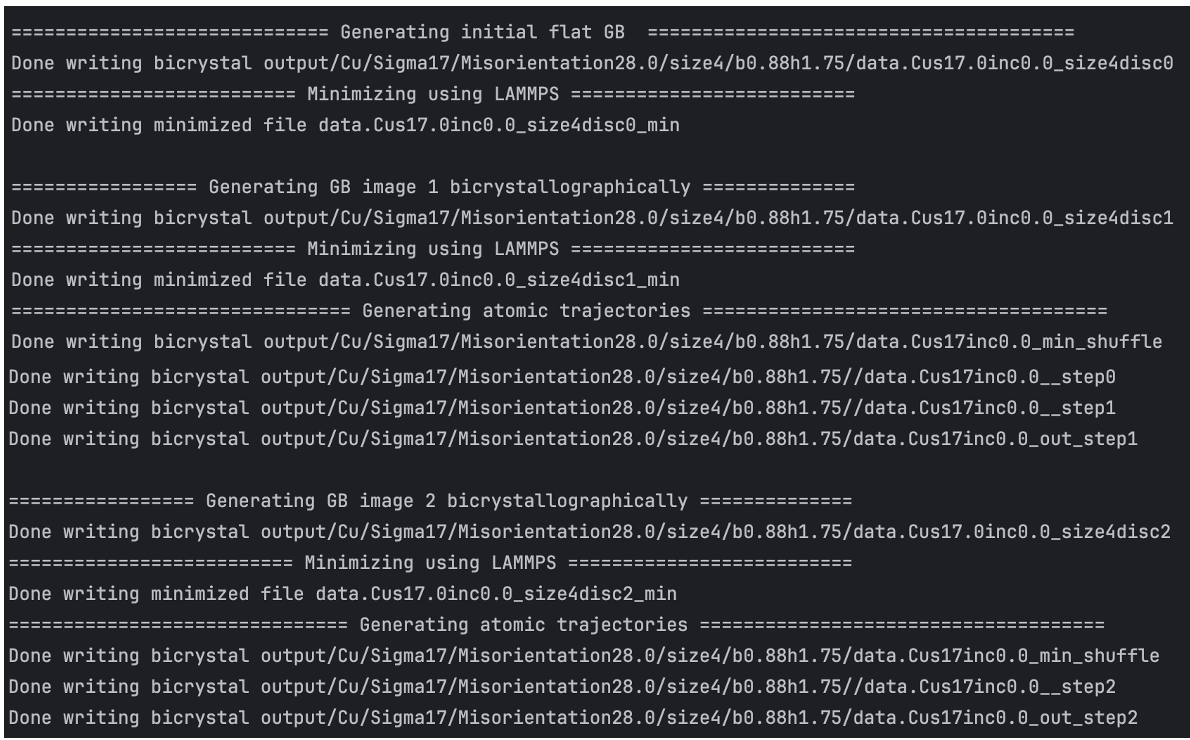

The code prints out which configuration it is generating and when completed, prints out the location of the output generated.

Output

All the generated configurations are stored in: output/<Element>/Sigma<GB sigma number>/Misorientation<GB misorientation>.0/size<Size of box along GB>/b<Disconnection burgers vector>h<disconnection step height>

This code generates atomic configurations of different types:

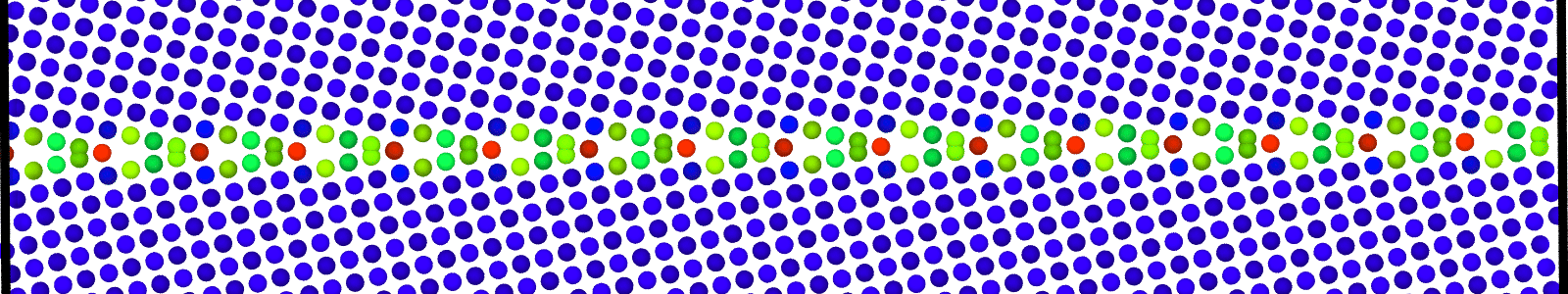

1. LAMMPS data files for bicrystal with atoms obtained from bicrystallographic data and an applied plastic displacement , as discussed in Theory. These files are named as : data.Cus<GB Sigma>.0inc<GB inclination>_size<Size along GB period>disc<configuration number>.

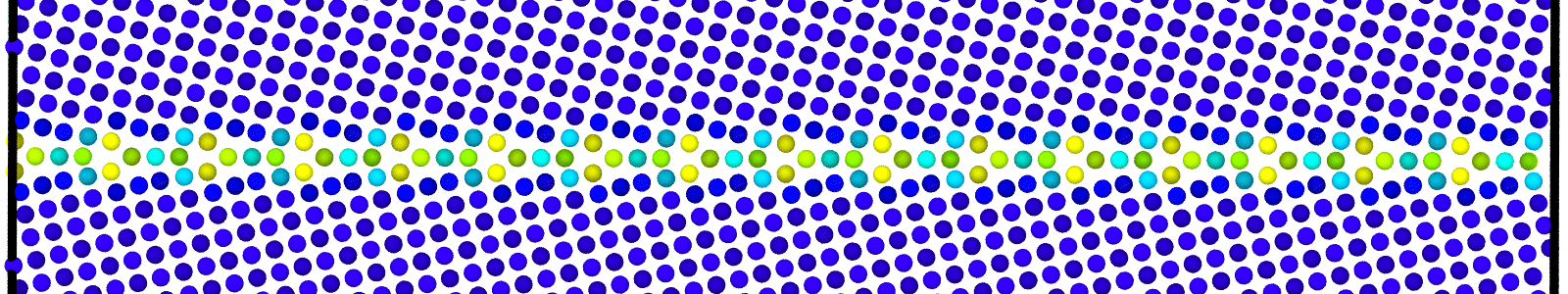

2. LAMMPS data files for minimized bicrystal with atoms now representing GB ground state. These files are named as : data.Cus<GB Sigma>.0inc<GB inclination>_size<Size along GB period>disc<configuration number>_min.

3. LAMMPS data files for bicrystals with atomic trajectories calculated using min-shuffle algorithm. These files are named as : data.Cus<GB Sigma>.0inc<GB inclination>_size<Size along GB period>__step<configuration number>.

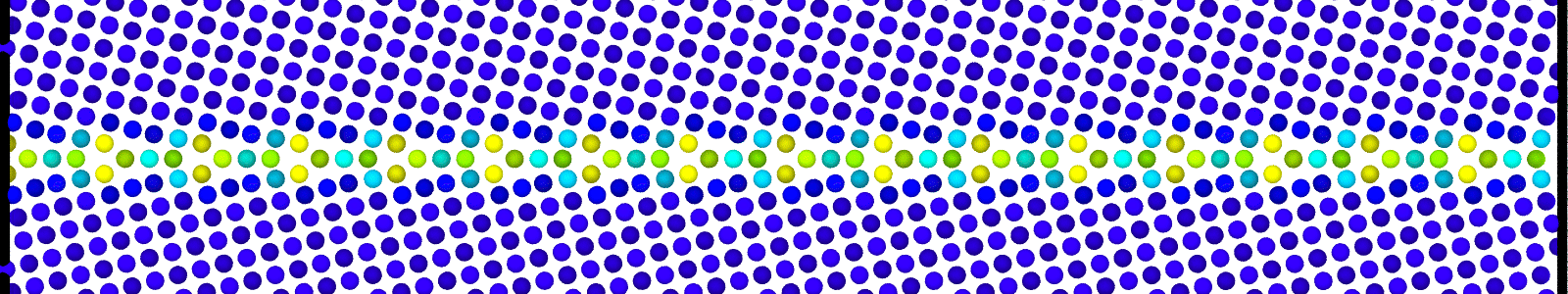

4. Data file corresponding to the bicrystals with atomic trajectories, containing the atoms that are to be included in neb calculations. These files are named as : data.Cus<GB Sigma>.0inc<GB inclination>_size<Size along GB period>_out_step<configuration number>.

5. A LAMMPS data file containing multiple timesteps showing minimization of the bicrystal generated from bicrystallography. These files are named as : data.Cus<GB Sigma>.0inc<GB inclination>_size<Size along GB period>disc<configuration number>_minmov.

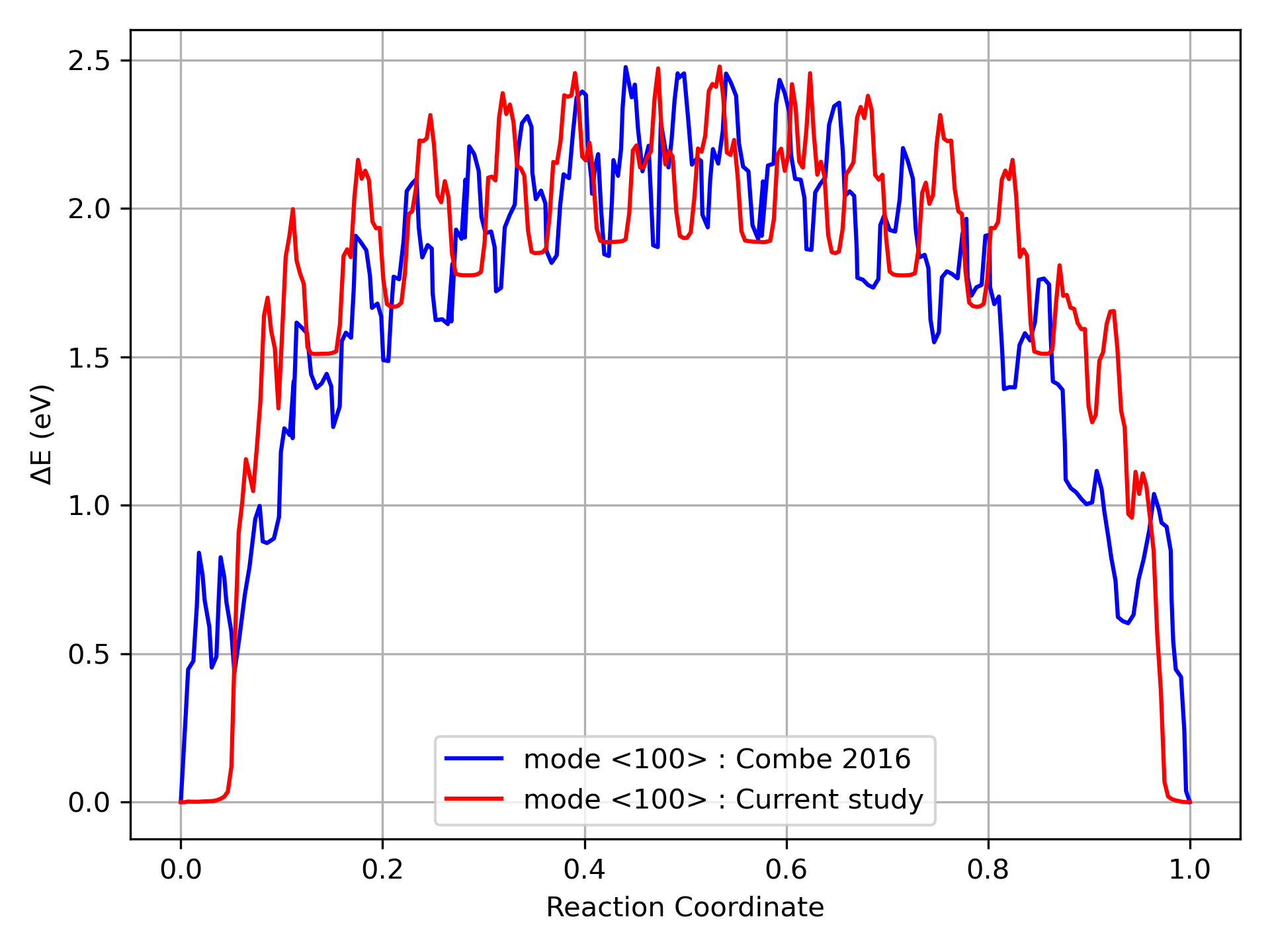

• The post processing function also plots the MEP w.r.t the reaction coordinates.Here, we present the results obtained by running this code and for comparison to existing method,we compare it with MEP calculated by Combe et. al. [1] for the same GB and box dimensions.

References

[1] N. Combe, F. Mompiou, M. Legros, Disconnections kinks and competing modes in shear-coupled grain boundary migration, Physical Review B 93 (2016) 024109.

Summary of important functions/classes used in the workflow

1. Bicrystals created in Construction of STGB microstate and Construction of atomistic GB migration images are objects of src.bicrystal.bicrystal class.

   • The function src.bicrystal.bicrystal.create_flat_gb_bicrystal() uses the methodology described in Construction of STGB microstate to create a bicrystal with as cut flat gb.

   • The function src.bicrystal.bicrystal.create_disconnection_containing_bicrystal() uses the methodology described in Construction of atomistic GB migration images to create a bicrystal with a disconnection step.

   • The function src.bicrsytal.bicrsytal.ordered_write() writes the bicrystal configurations generated into LAMMPS data files.

2. Grid search required in Construction of STGB microstate which in turn utilizes utilizes src.GBKineticsRunController.runGridSearch().

3. GB bicrystallographic data is read from oILAB output in Data using src.bicrystallography.bicrystallography.gb_props()

4. All calls to LAMMPS are handled by object of class src.runLAMMPS.run_LAMMPS.

   • The function src.runLAMMPS.run_LAMMPS.run_minimization() calls LAMMPS to minimize the bicrystal.

   • The function src.runLAMMPS.run_LAMMPS.run_grid_search() calls LAMMPS to run \(\gamma\) -surface method on a GB.

   • The function src.runLAMMPS.run_LAMMPS.run_neb_calc() calls LAMMPS to run a nudged elastic band calculation on the atomic configurations constructed in Construction of atomistic GB migration images.

5. Calculation of min-shuffle based atomic trajectories is done using an object of class src.min_shuffle.min_shuffle.
